MIIVII APEX Xavier II
|
IP65 Protection High performance active fan cooling system 8×GMSL2 Camera supported -25℃-70℃ Operating temperature 2×MINI PCIE Slot，1×M.2 Slot |
- 8-channel GMSL 2.0 automotive-grade camera access, backward compatible with GMSL 1.0 cameras;
- 5-channel CAN FD interfaces;
- IP65 high level protection;
- Data fusion of multiple sensors and single-chip clock synchronization in microsecond;
- Rich and stable automotive-grade interfaces;
|
Processor |
NVIDIA Jetson AGX Xavier |
|||
|
Performance |
32TOPS |
|||
|
Video Encode |
2*1000MP/sec |
16*1080p @60（HEVC） |
||
|
4*4K @ 60 (HEVC) |
32*1080p @ 30 (HEVC) |
|||
|
Video Decode |
2*1500MP/sec |
6*4K @ 60 (HEVC) |
||
|
2*8K @ 30 (HEVC) |
26*1080p @ 60 (HEVC) |
|||
|
52*1080p @30（HEVC） |
||||
|
CPU |
8-Core Carmel ARM V8.2 64-Bit CPU, 8MB L2 + 4MB L3 |
|||
|
GPU |
512-Core Volta GPU with 64 Tensor Cores |
|||
|
Memory |
16GB 256-bit LPDDR4x / 32GB 256-bit LPDDR4x |
|||
|
Storage |
32GB eMMC 5.1 |
|||
|
DLA Accelerator |
2*NVDLA Engine |
|||
|
Camera |
2*GMSL2 4 IN 1 MINI FAKRA TYPE |
|||
|
I/O |
2*PoE+ Gigabit Port |
1*HDMI 2.0 |
2*USB 3.0 |
4*DI |
|
4*DO |
5*CAN FD |
6*UART |
|
|
|
Sync I/O: 1*SYNC_IN, 1*SYNC_OUT, 1*SYNC_PPS |
||||
|
Extension |
1*Nano SIM Socket |
2*Mini PCIe for4G/WIFI |
1*M.2 For SSD |
|
|
Function key |
1*Recovery Button |
1*Power Button |
1*Reset Button |
|
|
Power Supply |
9V-36V DC |
|||
|

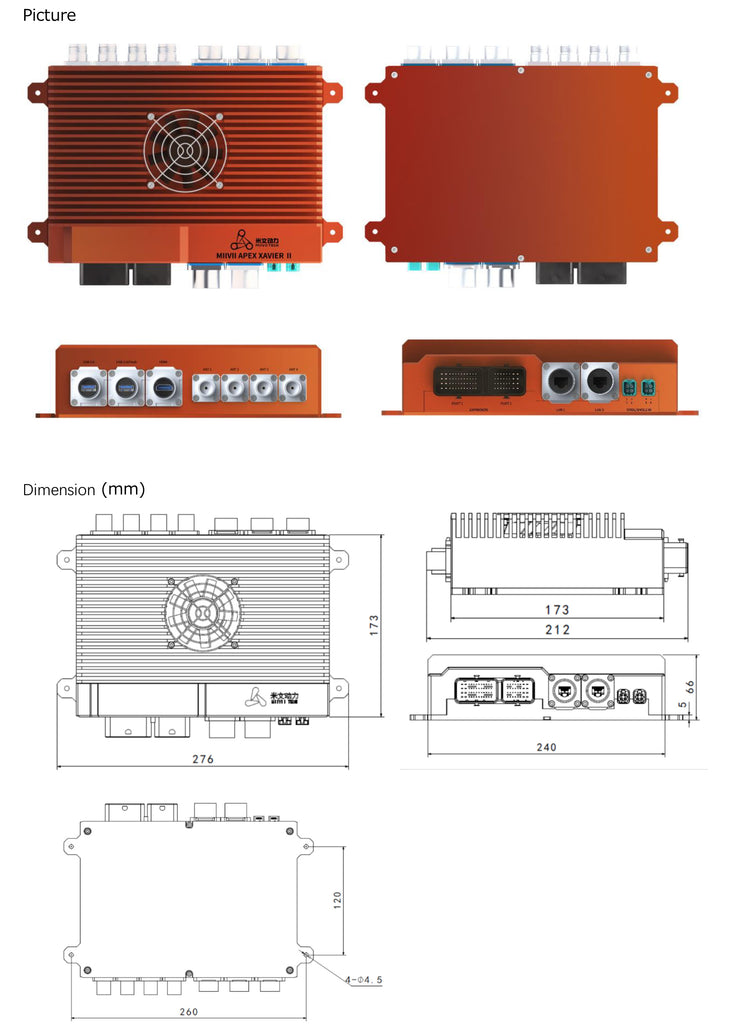

Mechanical |
276mm×66mm×212mm 2.7Kg |
|||
|
IP Rate |
IP65 |
|||

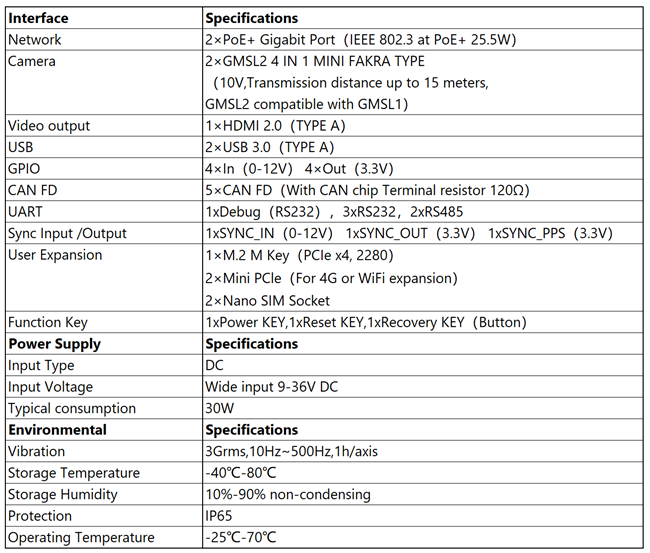

Specifications
|
|
